Terminal Blocks: The Essential Guide for Safe and Reliable Electrical Connections

Electrical control cabinet reliability starts with stable wiring connections. Every panel builder and equipment procurement engineer knows this truth. Yet terminal blocks are often treated as generic commodity parts.

Most field electrical faults do not stem from expensive main components like PLCs or contactors. They come from trivial wiring issues: loose clamping, insufficient isolation, wrong terminal types, and poor environmental adaptability.

From years of on-site cabinet assembly and troubleshooting experience, standardizing terminal block selection eliminates over 60% of intermittent circuit faults. These small components determine long-term equipment uptime, maintenance costs, and operational safety.

This essential guide breaks down industrial terminal block types, core selection parameters, field pros and cons, and practical application rules. It delivers straightforward, engineer-focused content for daily design and procurement work.

What Are Industrial Terminal Blocks, and Why Do They Matter?

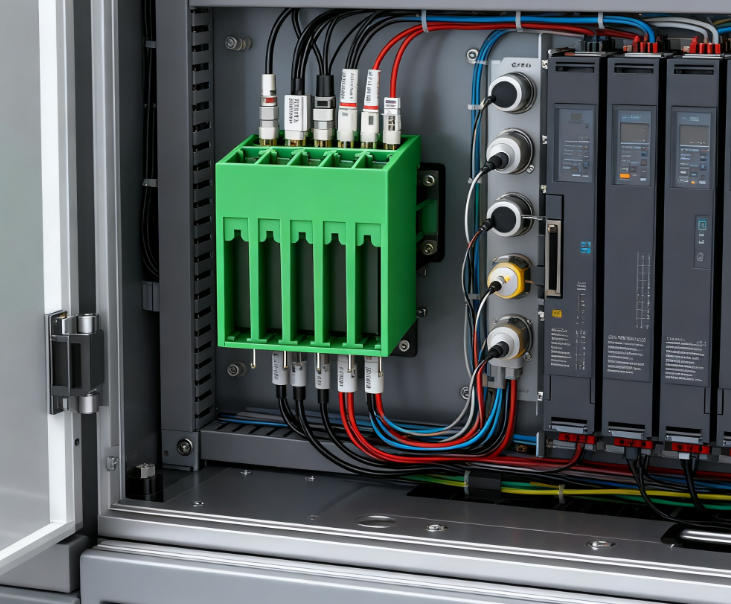

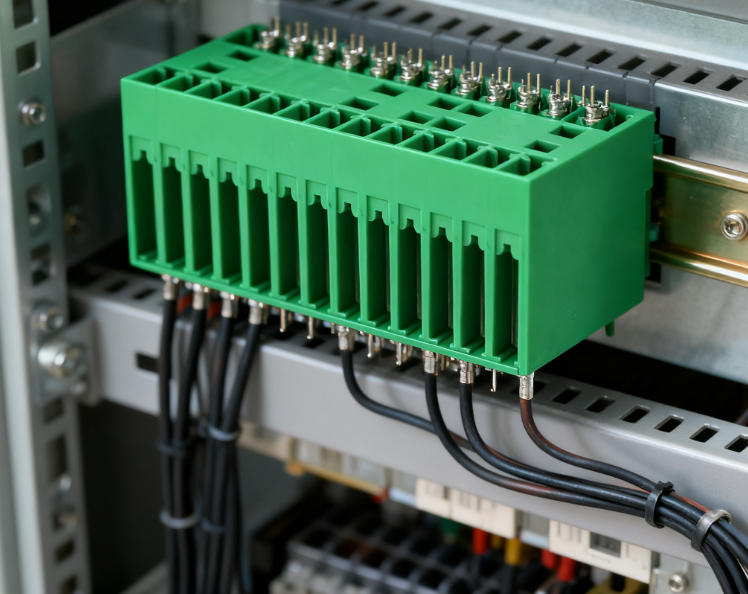

Industrial terminal blocks are modular connection components. They standardize wire splitting, circuit transition, and equipment wiring inside control cabinets.

Unlike casual wiring joints, certified terminal blocks provide fixed insulation, stable clamping force, and unified wiring specifications. They solve two key field pain points effectively.

First, they avoid messy twisted wire connections that easily loosen under vibration. Second, they isolate circuits clearly, making daily inspection, testing, and circuit modification far simpler.

In industrial environments with vibration, dust, and humidity, qualified terminal blocks act as the first line of defense for electrical system safety.

4 Main Types of Industrial Terminal Blocks: Full Field Comparison

Different working conditions require matched terminal blocks. Using a unified terminal type for all circuits is the most common design flaw. The table below compares four mainstream industrial terminal blocks from actual cabinet application perspectives.

Core Field Rules for Reliable Terminal Block Selection

Many engineers only refer to voltage and current parameters for selection. This single-dimensional judgment leads to hidden operational risks. Combined with on-site experience, we summarize three core selection principles.

1. Prioritize environmental adaptability over basic parameters

Rated current and voltage are basic thresholds. The actual industrial environment determines long-term reliability.

For workshop cabinets with continuous vibration, dust, and high humidity, barrier terminals are the most cost-effective choice. Ordinary terminals will have insulation degradation and loose wiring after 6–12 months of operation.

2. Match terminal type by circuit function

Power circuits and signal circuits cannot share the same terminal configuration.

High-current mains input and motor control loops require barrier terminals for safety isolation. Low-current PLC signal wiring can adopt screwless terminals to improve assembly efficiency. Modular sensor modules are suitable for pluggable terminals to facilitate later replacement.

3. Balance production efficiency and after-sales cost

Low-volume customized cabinets can use cost-effective screw terminals. Mass-produced standardized cabinets should use screwless terminals to reduce labor errors. Key equipment with high after-sales maintenance costs must adopt barrier terminals to cut fault rates.

Frequently Asked Questions (FAQ) for Terminal Block Application

Q1: Are expensive high-spec terminal blocks always necessary for industrial cabinets?

No. Blind over-specification increases unnecessary procurement costs. The best solution is classified matching. Use cost-effective standard screw terminals for static low-power signal circuits. Deploy high-safety barrier terminals for core power loops and vibration-prone positions. Match screwless and pluggable terminals according to production and modular demands, which balances safety, efficiency and cost perfectly.

Q2: What is the most common terminal block failure in field operation?

The top failure is loose connection and intermittent short circuits caused by vibration. Most hidden faults are not due to product quality problems. They result from mismatched terminal types. Standard terminals lack isolation structure, and stranded wire strands drift under long-term vibration, triggering instantaneous short circuits and unexpected equipment shutdowns. This problem can be completely avoided by upgrading to barrier terminals for key circuits.

Q3: Can screwless push-in terminals replace traditional screw terminals completely?

Complete replacement is not recommended. Screwless terminals have obvious advantages in assembly efficiency and clamping stability for conventional signal and low-power circuits. However, for ultra-high current power circuits and on-site maintenance scenarios with complex wire gauges, traditional screw terminals have better compatibility and maintainability. Mixed configuration is the most practical engineering solution.
