A standard 3.81mm pitch ensures compatibility with most PCB designs. Its robust construction, made from high-quality insulation materials and durable metal contacts, withstands long-term operation and repeated insertions and removals without loosening. Installation is simple, allowing for quick fastening with screws or plug-ins, reducing assembly time.
Item No :
H15EDGAM-3.81Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqThis 3.81mm PCB Terminal Connector Block with High Durability is a premium terminal block specifically designed for circuit board connections. It utilizes a standard 3.81mm pitch and is compatible with most PCB designs and components, making it ideal for a variety of applications, including industrial equipment, smart homes, and power modules.
Type: PCB Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
| Housing | PA66, UL94V-0 |
| Pin header | Copper alloy ,Tin Plated |
| Rated Voltage |
UL IEC 300V 250V |
| Rated Current | 8A 7A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 1500V/1 Min |
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |


A: This is a right‑angle double‑row connector with mounting flanges.
Flanges screw‑fasten to PCB or metal mounting brackets.
Cable pulling stress goes onto the flange, not solder joints.
Right‑angle layout saves depth space inside compact control units.

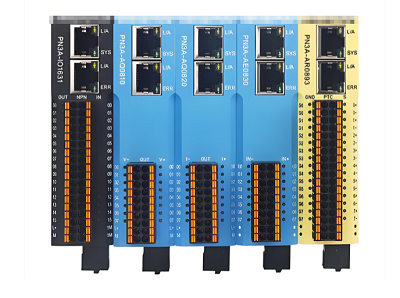

It is widely used for small PLC boards, signal acquisition modules and compact I/O circuits.
You can unplug whole wiring harnesses for fast field maintenance.
It is designed for low‑voltage signal loops, not heavy power loads.
A: Typical ratings: 300 V, 8‑10 A per contact under IEC and UL conditions.
Works with 0.5‑1.5 mm² solid or stranded wires.
Fine stranded conductors should use wire ferrules.
Do not connect motor high‑power circuits to these terminals.
Real‑world feedback shows most connection failures come from poor wire preparation, not component defects.
A: Over‑tightening flange screws is a frequent mistake.
Excessive torque may crack plastic housing or warp the PCB.
Make sure flange faces sit flat against mounting surfaces.
Deburr metal bracket holes. Sharp burrs create hidden mechanical stress.
Never force‑push the mating plug. Hard pressure bends pins or damages locking features.
Check for full seating after mating. You should feel a clear locking click.
Avoid pulling cables directly on the connector; this can crack solder points.
A: 3.81 mm is a standard pitch, so parts may fit mechanically.
But pin thickness, contact depth, flange dimensions and spring pressure differ between brands.
Cross‑brand pairing may cause intermittent contact after cabinet vibration and temperature cycling.
Use matched header‑plug sets from one supplier for mass cabinet production.
If cross‑brand use is unavoidable, run vibration and thermal‑cycle tests before large‑volume deployment.
A: Inspect pin straightness on incoming batches. Bent pins cause partial mating and unstable signals.
Check flange mounting holes for deformation.
Verify the plug engages and releases smoothly without jamming.
During cabinet commissioning, perform light pull tests on wired cables.
