H2EDGM-5.0 PCB Terminal Block Connector for Electrical Connections

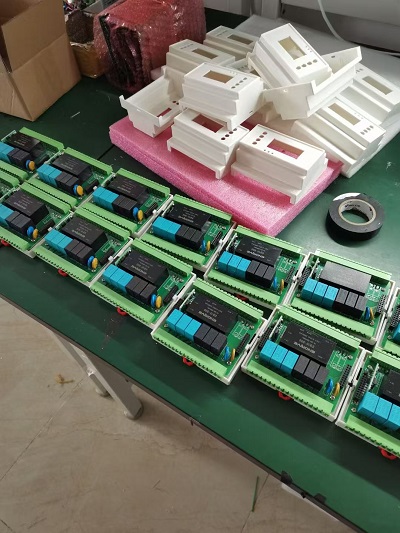

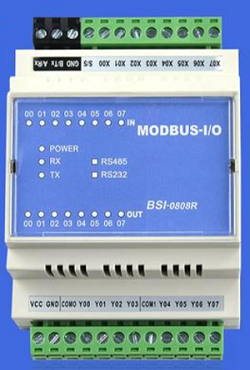

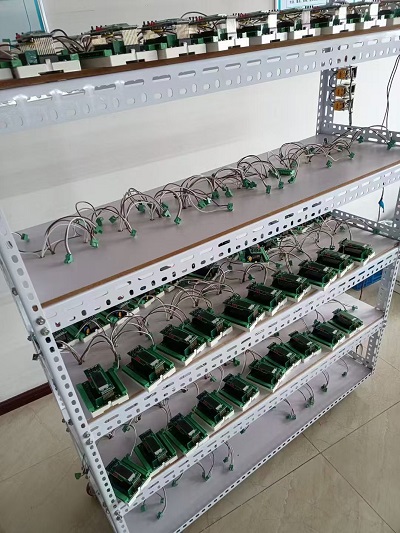

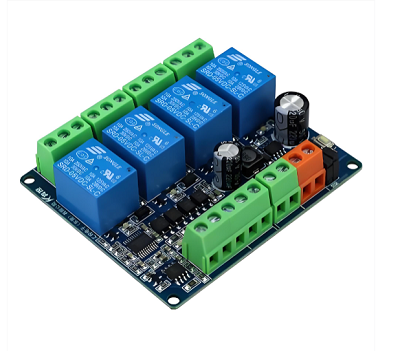

Industrial Automation

Widely used in control panels, mechanical equipment, and automation systems to help connect power and signal lines.

Automotive Electronics

Ideal for automotive electronic systems, including lights, sensors, and power modules.

Consumer Electronics

Suitable for a variety of home appliances and electronic devices that require reliable PCB connections.

Renewable Energy Systems

Used for electrical connections in solar panels, inverters, and battery management systems.

Home and Commercial Electronics

Ensure the stability of electrical connections in home appliances, security systems, and communication equipment.

Q1: What practical value does the 5.0 mm flanged pluggable terminal plug bring to cabinet assembly?

A: This plug comes with mounting flanges on both sides.

Flanges fasten the plug to chassis or PCB brackets with screws.

Mechanical load from cable pulling goes to the flange, not solder joints.

It works for signal and low‑power circuits inside control cabinets.

You can disconnect whole wiring harnesses for maintenance.

No need to re‑wire every single terminal point.

Common uses include PLC I/O, sensor and small actuator connections.

Q2: What wire range and electrical ratings should I follow for this 5.0 mm flanged pluggable plug?

A: Typical ratings: 300 V, 10‑12 A per contact under IEC and UL standards.

Compatible wire sizes: 0.5‑2.5 mm² solid or stranded conductors.

Fine stranded wires need ferrules for stable contact.

Do not connect heavy motor power circuits to this connector.

On‑site feedback shows most connection faults stem from bad wire preparation, not component defects.

Q3: What common assembly mistakes happen with flanged 5.0 mm pluggable terminals?

A: Many installers over‑tighten flange fixing screws.

Too much torque can crack the plastic housing or warp mounting brackets.

Make sure flange surfaces sit flat against mounting surfaces.

Deburr metal mounting holes. Sharp burrs create hidden stress on the flange.

Never force‑push the plug into the header.

Force will bend pins or damage the locking structure.

Check for full seating after mating. You should feel a clear lock click.

Q4: Can I mix 5.0 mm flanged plugs and headers from different manufacturers?

A: 5.0 mm pitch is industry‑standard, so parts may fit physically.

But flange dimensions, pin thickness and spring contact pressure vary across brands.

Cross‑brand mating may lead to intermittent contact after cabinet vibration and temperature swings.

Use matched plug‑header sets from one supplier for mass‑produced cabinets.

If cross‑brand pairing is mandatory, run vibration and thermal cycle tests before full‑scale production.

Q5: What incoming inspection and commissioning checks are key for 5.0 mm flanged pluggable plugs?

A: Check flange mounting holes for deformation when receiving goods.

Inspect pins for bending or distortion. Bent pins cause partial mating.

Verify the release lock works smoothly.

During cabinet commissioning, give each wired cable a light pull test.

Confirm the flange bears the pull force instead of solder points.

Keep metal shavings away from contact chambers.
