H15EDGV-2.5 Pin Header Terminal block Straight

2.5mm Pitch Pin Header Terminal Block Straight

The 2.5mm single row straight pin PCB terminal block is the most basic and universal board-to-wire connector. Its core function is to serve as a reliable and detachable electrical bridge between external wires and printed circuit boards (PCBs).

As the "foundation" for electronic engineers, this terminal block provides a standard, economical, and reliable connection channel. When selecting, focus on the three core elements: current capacity, wiring method, and wire gauge.

1. Core Features & Pole Options

• Pin Arrangement: Single straight line with a simple, space-saving structure.
• Pin Spacing: Fixed at 2.5mm (standardized industrial pitch).
• Installation Method: Through-hole soldering. Pins are soldered after passing through the PCB board, providing high mechanical strength.
• Type: PCB Pluggable Screw Terminal Block.

2. Comprehensive Technical Specifications

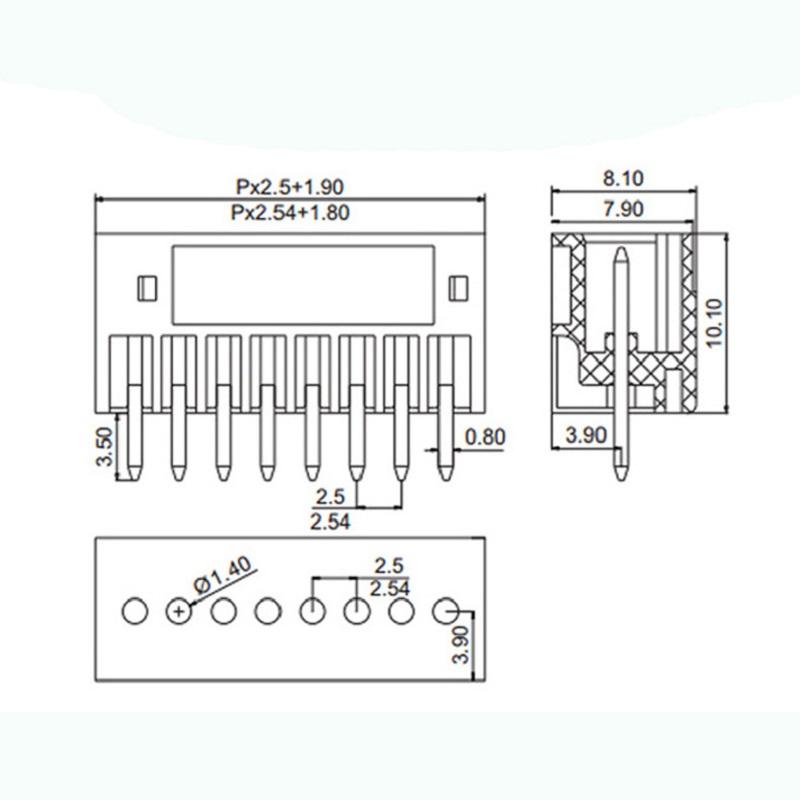

3. Product Dimensions

Please refer to the following engineering drawing for exact PCB layout and pin dimensions:

4. Key Advantages

• Reliable Connection: The through-hole welding is firm and easily withstands mechanical stresses.
• Convenient Wiring: No need to solder wires directly on the PCB, making it highly efficient to install, test, and maintain.
• Cost-Effective: Simple structure ensures low production and manufacturing costs.
• Strong Universality: The 2.5mm standard spacing ensures strong compatibility and easy procurement for engineers.
• Flexible Design: Adapts to multi-type sockets, meeting various keying requirements for universal installation.

5. Typical Industrial Applications

The 2.5mm pluggable terminal block is widely utilized across various demanding sectors:

• Industrial Control: PLCs, servo drives, I/O modules.
• Power Supply Equipment: Input/output interfaces for switch-mode power supplies and UPS.
• Automotive Electronics: Body control modules, sensor interfaces.
• Communication & Networking: Basic power supply and signal connections for routers and switches.
• Smart Devices: Household appliances, smart meters, and IoT equipment.

6. Packaging & Shipping

We use high-quality, anti-static, and shock-proof packaging materials to ensure your bulk orders won't be damaged during global transit. Acceptable trade terms include: EXW, FOB, CFR, CIF.

7. Technical FAQ

Q1: Are 2.5mm pluggable terminal blocks reliable for long-term PCB industrial use?

A: Yes, they are highly reliable for industrial PCB projects when using qualified through-hole pin headers. Our high-quality 2.5mm male header terminals adopt tin-plated copper pins and strict coplanarity control, ensuring full contact during wave soldering. In actual cabinet production, well-soldered terminals show stable conductivity and strong anti-loosening performance, fitting long-term continuous operation for controllers and automation boards.

Q2: What current can a 2.5mm pluggable terminal block actually carry?

A: Most standard 2.5mm PCB pluggable terminals support a 5A to 10A rated current. However, in field engineering, we do not suggest running them at maximum current continuously. Due to dense PCB layouts and cabinet heat accumulation, reserving a 20% current margin effectively avoids overheating and extends the terminal's service life.

Q3: What is the advantage of 2.5mm pluggable terminals compared to fixed screw terminals?

A: The biggest on-site advantage is maintainability and replaceability. Fixed screw terminals require rewiring during board repair, whereas 2.5mm pluggable structures support direct plug-and-unplug. Engineers can quickly replace modules without changing internal wiring, greatly reducing after-sales maintenance time for automation and IoT devices.

Q4: Can 2.5mm pluggable terminal blocks withstand the wave soldering process?

A: Yes, our industrial-grade 2.5mm male headers are fully compatible with wave soldering. They use high-temperature PA66 UL94 V-0 housing. The pins are fixed with knurled and rivet structures to prevent loosening during high-temperature welding. Strict pin coplanarity guarantees uniform soldering and zero empty solder joints in mass production.

Q5: What applications are 2.5mm PCB pluggable terminal blocks best suited for?

A: They are ideal for compact industrial devices that require stable signal and low-power connections. Common on-site applications include motion controllers, protection devices, smart meters, security equipment, and IoT automation modules. The 2.5mm universal pitch balances compact size and versatility, making it the most cost-effective option for small and medium-sized PCB control boards.
