H15EDGRHM-3.5 double rows terminal blocks with side screw

H15EDGRHM-3.5 double rows terminal blocks with side screw

This is a compact, space-saving double-deck (two-story) terminal block designed for reliable wire-to-board connections. Featuring a 3.5mm pin pitch and 90-degree right-angle bending, it allows for low-profile parallel mounting to the PCB. The unique double-layer design effectively doubles the wiring density while minimizing board space consumption. Integrated mounting ears (flanges) on both ends provide reinforced mechanical fixing, ensuring high vibration resistance and stable soldering.

1.Type and Pole

Type: Double Row Terminal Block

Pole:

2.Material  Of  Pluggable Terminal Block

3.Electrical  Of  Pluggable Terminal Block

4.Mechanical  Of  Pluggable Terminal Block

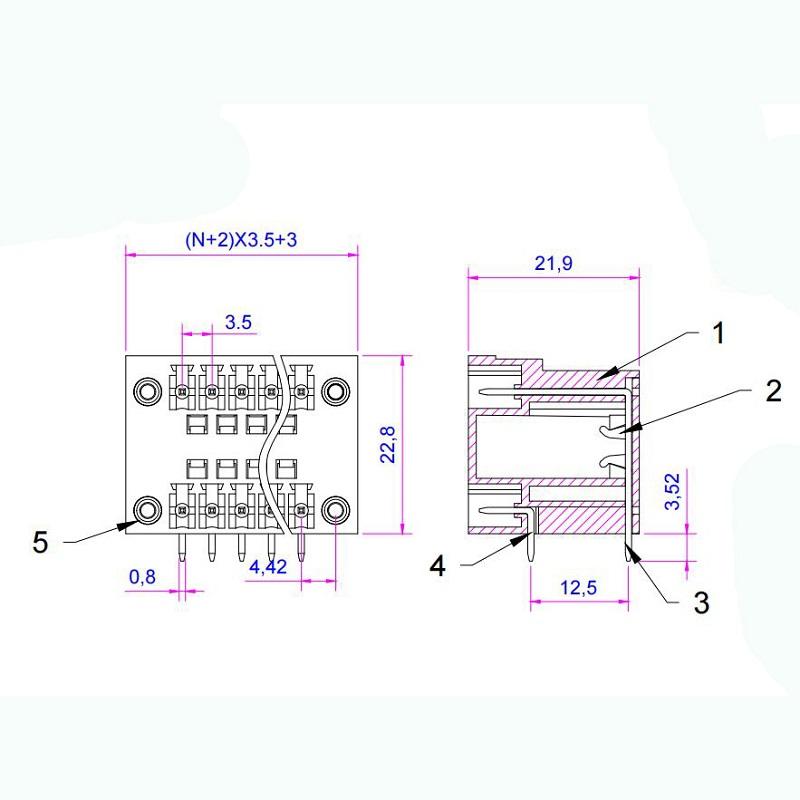

5.Dimensions

6.Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

 Key Features

Double-Layer (Dual-Level) Design: Two independent wiring rows in a single housing, maximizing PCB space efficiency.

3.5mm Pitch: Standard fine-pitch spacing, suitable for compact electronic devices.

Right-Angle (90°) Pin Orientation: Ideal for low-height enclosure designs and edge-mounted connections.

Dual-Side Mounting Ears: Pre-drilled flanges on both sides for screw fixation, enhancing PCB retention against pull-out forces and mechanical shock.

High Temperature Resistance: Compatible with lead-free reflow soldering processes (typically withstands 260°C).

Clear Polarization: Mismating prevention design ensures correct connector insertion.

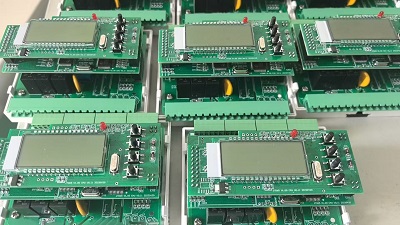

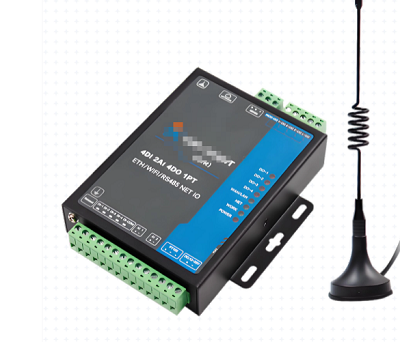

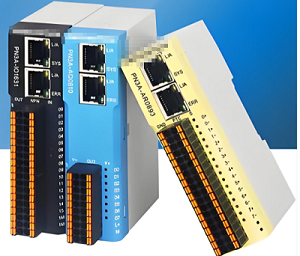

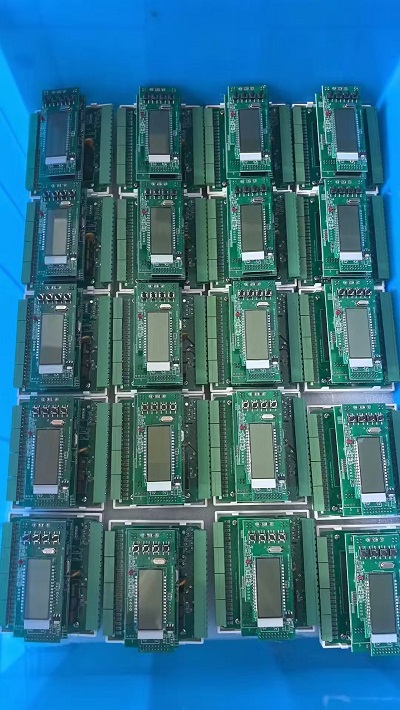

7.Application  Of  Pluggable Terminal Block

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

8.Package  Of  Pluggable Terminal Block

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
