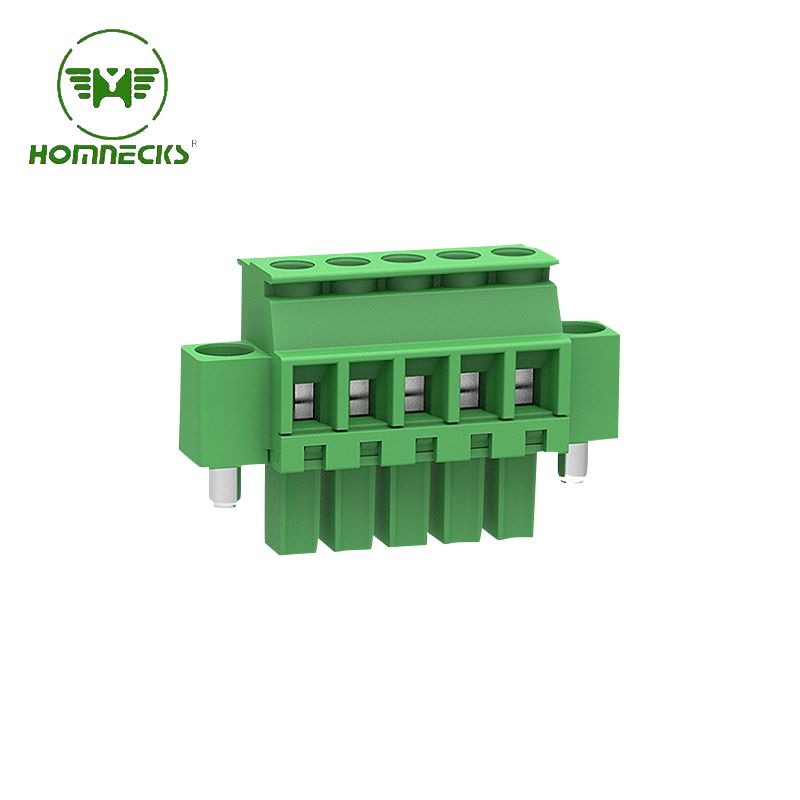

H15EDGKBM-3.5 with side screw Pcb terminal connector

H15EDGKBM-3.5 with side screw Pcb terminal connector

Utilizing a 3.5mm pin spacing, this connector optimizes PCB real estate while providing robust performance in medium-voltage and signal-level applications. The B-side design signifies the pluggable half of the connection, allowing for easy field wiring and replacement without disturbing the PCB-mounted header.

1.Type and Pole

Type: Pcb Pluggable Screw Terminal Block

Pole:

2.Material  Of  Pluggable Terminal Block

3.Electrical  Of  Pluggable Terminal Block

Mechanical Design: The 180-degree orientation means wires are inserted and clamped parallel to the plug's mating direction. The housing typically features an integrated screw flange or latch to ensure a secure and vibration-proof connection when mated with the corresponding pin header.

Wire Termination: The plug employs a reliable screw-clamp or rising cage clamp mechanism. This ensures a gas-tight, corrosion-resistant connection for solid or stranded wires. It is designed for tool-operated clamping, providing high contact force and low resistance.

4.Mechanical  Of  Pluggable Terminal Block

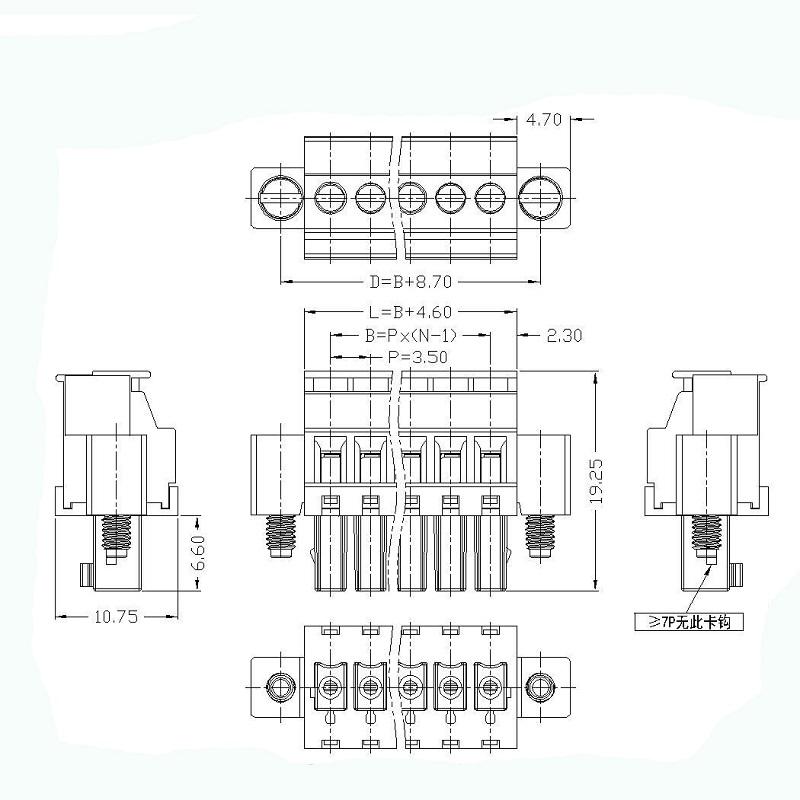

5.Dimensions

6.Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

Construction: Molded from a high-temperature, flame-retardant insulator (UL94V-0 rated) to withstand reflow soldering processes (for the header) and environmental stress. Current-carrying parts, such as the screw clamp and solder pins (if applicable) or female receptacles, are made from copper alloys with a protective tin or nickel plating.

Applications: Widely used in industrial control systems, building automation, power supplies, instrumentation, and HVAC equipment. The 3.5mm pitch and pluggable design make it ideal for I/O (Input/Output) connections where space is limited and modularity is required.

7.Application  Of  Pluggable Terminal Block

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

8.Package  Of  Pluggable Terminal Block

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
