H15EDGKDH-3.5 Pcb terminal block connector

H15EDGKDH-3.5 Pcb terminal block connector

Core structure and working principle

Plug section:

Insulated shell: usually made of flame-retardant PC or nylon material, common colors include white, black, and blue.

Metal terminal: The core conductive component, usually made of phosphor bronze or brass, has good elasticity and conductivity, and is plated with tin or gold on the surface. There is a spring clamping structure on the terminal.

Operation hole/push rod: There is a small hole next to each wiring position for inserting a dedicated wire picking tool (usually included with the terminal), pressing down the internal spring plate to release the wire.

Guide keys and buckles: Ensure correct alignment and secure locking with PCB needle sockets.

1.Type and Pole

Type: Pcb Pluggable  Terminal Block

Pole:

Workflow (wiring):

Inserting wires: Insert solid wires with stripped ends (usually 7-10mm) or multi stranded wires with cold pressed ends directly into the corresponding holes of the plug vertically until there is a "click" sensation or the insertion cannot continue. The internal spring plate will firmly clamp the wire.

Pulling out the wire: Insert the dedicated wire picking tool into the operating hole, press open the spring plate, and the wire can be easily pulled out.

Precautions for use

Be sure to use the correct wire type: it is strongly recommended to use solid wires or install tubular pre insulated cold pressed ends for multi stranded wires. Directly inserting untreated multi strand flexible cords is the main cause of poor contact and malfunction.

Do not use beyond specifications: It is strictly prohibited to connect loads that exceed the rated current.

Proper use of tools: When disassembling, be sure to use the matching wire picking tool and do not pry hard with sharp objects to avoid damaging the spring.

Confirm in place: When inserting the wire, make sure it is fully inserted until you feel significant resistance.

2.Material  Of  Pluggable Terminal Block

3.Electrical  Of  Pluggable Terminal Block

4.Mechanical  Of  Pluggable Terminal Block

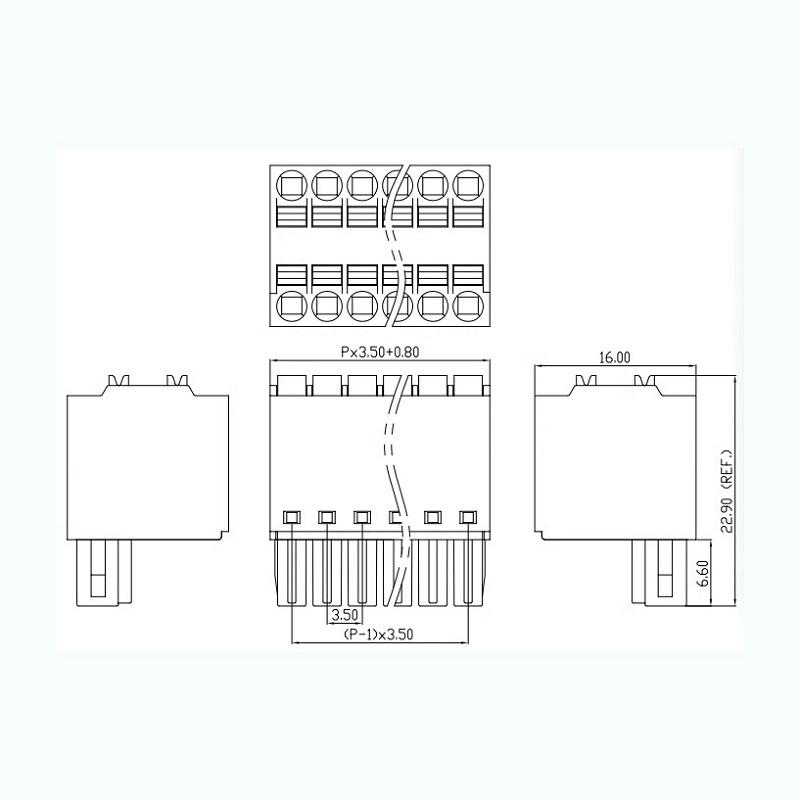

5.Dimensions

6.Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

main advantages

Extremely high wiring efficiency: This is the biggest advantage. By eliminating the steps of tightening screws and finding screwdrivers, the wiring speed has been increased by over 70%, making it particularly suitable for large-scale production or rapid on-site installation and maintenance.

Reliable anti vibration: The spring pressure is constant, and it is not easy to loosen in a vibrating environment, with better performance than ordinary screw terminals (screws may loosen due to vibration).

High density and compactness: The dual row design provides a large number of connection points in a limited space, making it ideal for devices with limited space such as LED display modules and controllers.

Dumb design: The plug and pin holder usually have guide keys to prevent reverse insertion.

Reliable contact: Spring clamping provides uniform and long-lasting contact pressure, minimal oxidation, and stable contact resistance.

Easy maintenance: With the use of tools, any wire can be quickly replaced without the need to disassemble other circuits.

7.Application  Of  Pluggable Terminal Block

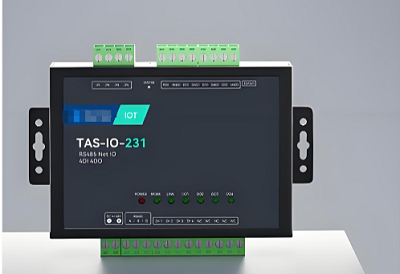

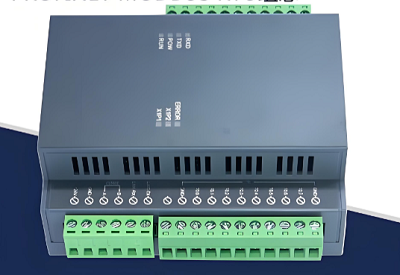

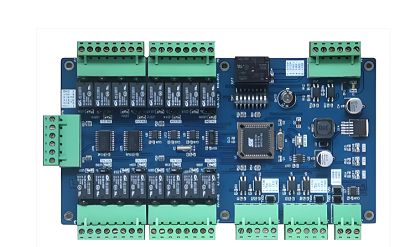

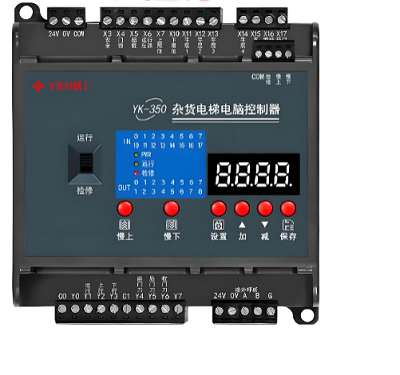

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

8.Package  Of  Pluggable Terminal Block

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
