H2EDG-2.54mm PCB Screw Terminal Block

H2EDG-2.54mm PCB Screw Terminal Block Series

Core features and advantages

High density and compactness:

The spacing of 2.54mm allows it to accommodate more connection points per unit length, making it ideal for modern compact electronic devices with limited space, such as industrial control modules, communication equipment, measuring instruments, power modules, etc.

Reliable screw connection:

Screw crimping provides a strong and reliable mechanical connection and electrical contact.

Can connect thicker wire diameters (usually suitable for wires around AWG 24-30).

Strong connection, good vibration resistance, suitable for industrial environments.

Wiring and rewiring are convenient and do not require special tools (a suitable screwdriver is sufficient).

Facilitating PCB integration and automated production:

Standard straight or bent pin pins are very suitable for wave soldering or reflow soldering processes, and can be automatically soldered together with other components on the PCB, resulting in high production efficiency.

1.Type and Pole

Type: Pcb Pluggable  Terminal Block

Pole:

2.Material  Of  Pluggable Terminal Block

Common types and styles

Pin direction:

Direct insertion: The pins are vertically downward, which is the most common type.

Right angle/bent angle: The pins are bent at a 90 degree angle, suitable for wires to be horizontally led out from the side of the PCB, which can save vertical space.

Incoming direction:

Vertical incoming line: The wire is inserted vertically from above the PCB and fixed.

Horizontal entry: The wire is inserted horizontally from the side of the terminal block.

Single and double row:

In addition to the common single row design, there are also double row designs (two rows of terminals back-to-back or side by side) to further improve connection density.

3.Electrical  Of  Pluggable Terminal Block

4.Mechanical  Of  Pluggable Terminal Block

5.Dimensions

6.Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

7.Application  Of  Pluggable Terminal Block

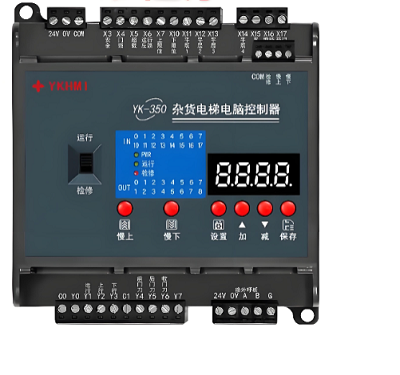

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

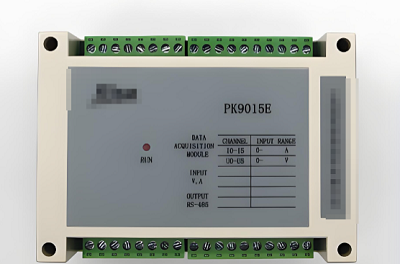

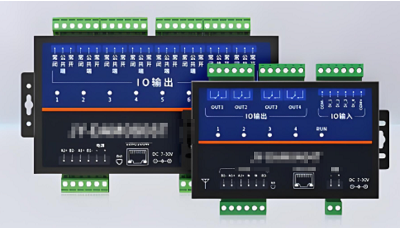

Industrial control: PLC I/O modules, sensor/actuator interfaces, motor drivers.

Power supply equipment: input and output interfaces for switch mode power supplies and UPS.

Telecommunications/network equipment: power or alarm signal connections in routers and switches.

Testing and measuring equipment: oscilloscopes, signal generators, and wiring terminals for data acquisition cards.

Security system: connection point for monitoring host and access control controller.

8.Package  Of  Pluggable Terminal Block

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
