H15EDGRH-3.5 double row terminal block

H15EDGRH-3.5 double row terminal block

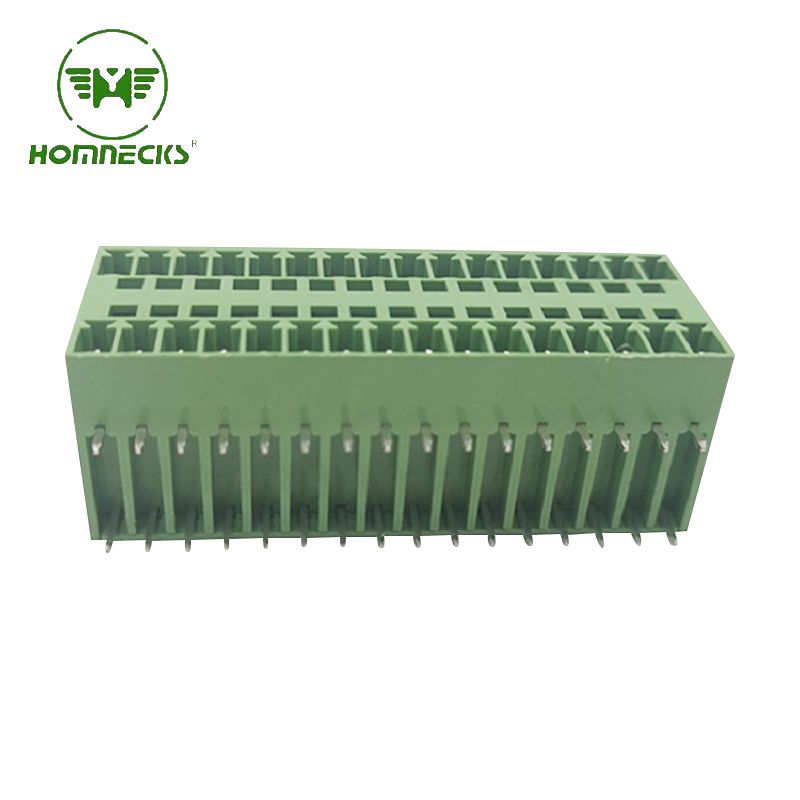

This is a compact, high-density double-deck (two-level) terminal block designed for efficient wire-to-board connections in space-limited applications. Featuring a 3.5mm pin pitch and 90° right-angle pin orientation, it enables low-profile parallel mounting to the PCB. The earless design (no side mounting flanges) minimizes board space occupation and allows for closer component placement, making it ideal for miniaturized electronic assemblies.

1.Type and Pole

Type: Double Row Terminal Block

Pole:

2.Material  Of  Pluggable Terminal Block

3.Electrical  Of  Pluggable Terminal Block

4.Mechanical  Of  Pluggable Terminal Block

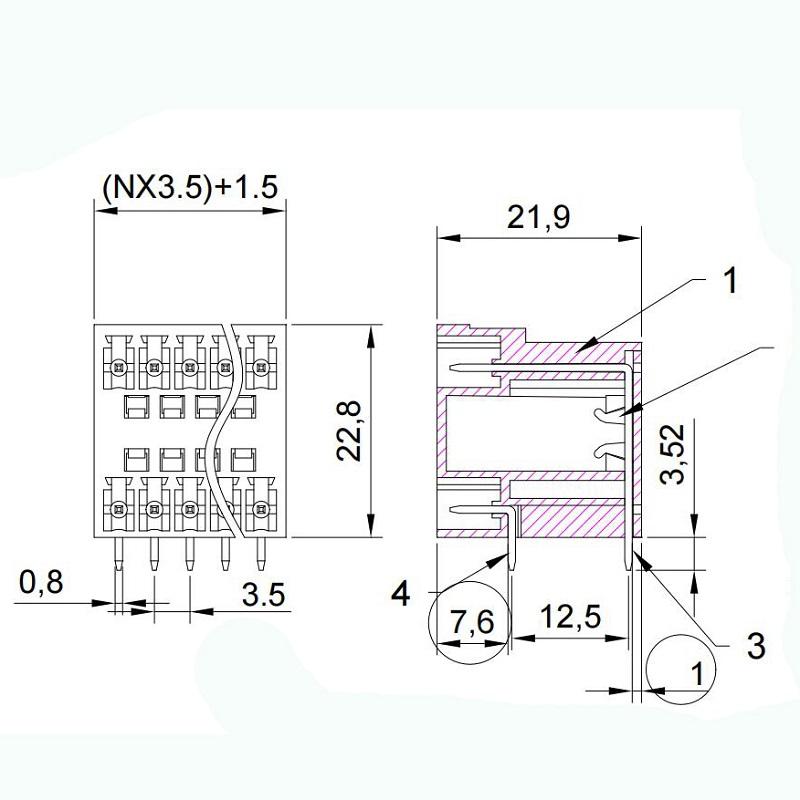

5.Dimensions

6.Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

Double-Layer Configuration: Two independent wiring levels in one housing, doubling connection density.

 3.5mm Standard Pitch: Fine pitch suitable for compact industrial and consumer electronics.

 Right-Angle (90°) Bending: Low-profile design, parallel to PCB surface.

 No Side Ears: Completely flange-free, maximizing PCB space utilization.

 High-Temperature Resistant: Compatible with lead-free reflow soldering (up to 260°C).

 Anti-Mismating Design: Polarized housing ensures correct plug insertion.

7.Application  Of  Pluggable Terminal Block

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

8.Package  Of  Pluggable Terminal Block

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
